Fluorescence Applications

Fluorescence is a highly sensitive method for detecting DNA, RNA or proteins. You can either bind fluorescent molecules directly to nucleic acids or proteins or with proteins; you can attach a fluorophore to a secondary or tertiary antibody that binds to your target protein. To visualise fluorescent molecules, you need to excite them with a high-intensity light source such as UV, RGB or IR light. When excited, a fluorophore generates light emission as many thousands of detectable photons that you can capture with a CCD camera. Since fluorescent molecules produce so many photons of light, with the right types of image capture technology, you can detect as little as picogram and femtogram levels of nucleic acids and proteins. Additionally, as each type of fluorophore produces light in different colours, you can use several fluorescent molecules simultaneously to detect many separate target proteins on one gel.

DNA/RNA/Protein Gels

You would traditionally use ethidium bromide to visualise DNA or RNA on your gels. This binds to nucleic acids and produces fluorescence with UV light. For safer DNA imaging, you can choose less hazardous dyes such as SYBR® Safe, SYBR® Gold, GelRed™, GelGreen™ and SYBR® Green which fluoresce with blue light.

Instead of using Coomassie Blue, you can choose AzureRed, Coomassie™ Fluor Orange, SYPRO® Ruby and SYPRO® Red protein stains. These bind to total protein and produce fluorescence with UV or blue light, and you can determine quantitative data from your bands by including protein standards.

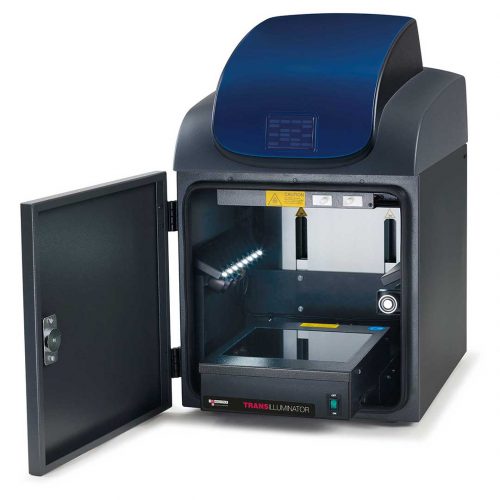

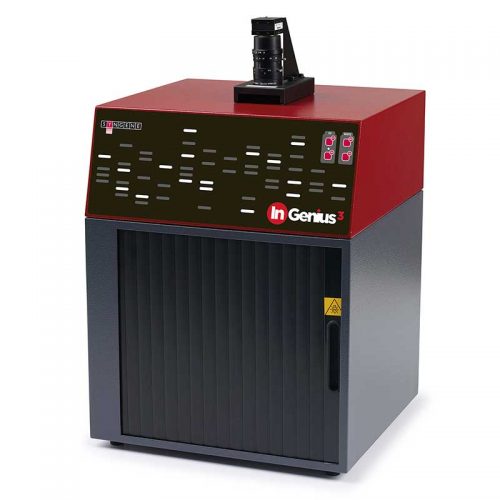

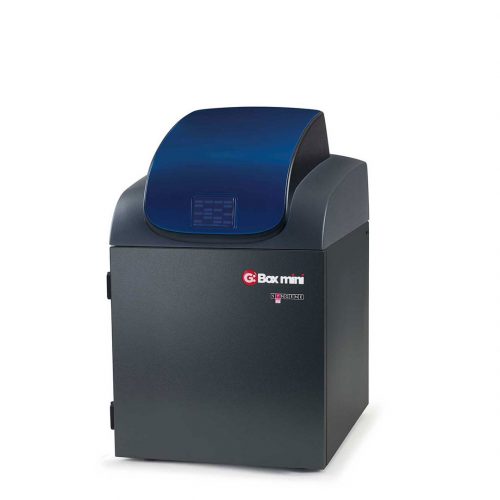

You can easily visualise all these dyes with NuGenius, InGenius, G:BOX or G:BOX mini systems. You can image fluorescent DNA, RNA or protein in seconds using a UV transilluminator and UV-blue light converter screen or blue light transilluminator options. When you need to cut bands out of your gel, the transilluminator slides out for easy access.

If you don’t want to do time-consuming staining and de-staining steps to visualise proteins, you can use the increasingly popular Stain-Free™ gels. These gels contain a compound in their matrix which binds to tryptophan residues in the protein and generates fluorescence with UV light.

The NuGenius+G:BOX or G:BOX mini systems have been optimised for quick and easy imaging of Stain-Free™ gels. Using UV transilluminator lighting options, each system’s software will select the right imaging conditions for you to get great results every time.

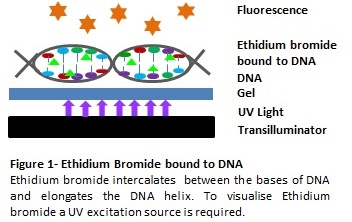

Figure 1: Ethidium Bromide bound to DNA

Ethidium bromide intercalates between the bases of DNA and elongates the DNA helix. To visualise Ethidium bromide, a UV excitation source is required.

Western Blots

With fluorescent western blotting you can attach a fluorophore such as Alexa Fluor®, IRDye®, DyLight™ or Qdot® to a secondary or tertiary antibody that binds to your target protein. Since these dyes emit different coloured light with high-intensity UV, RGB or IR lighting, you can use several fluorescent molecules simultaneously to visualise multiple proteins on one blot. This gives you the flexibility to multiplex without the loss of signal due to stripping and re-probing your blot, and because fluorescent signals have greater stability over time, your results are linear and more accurate.

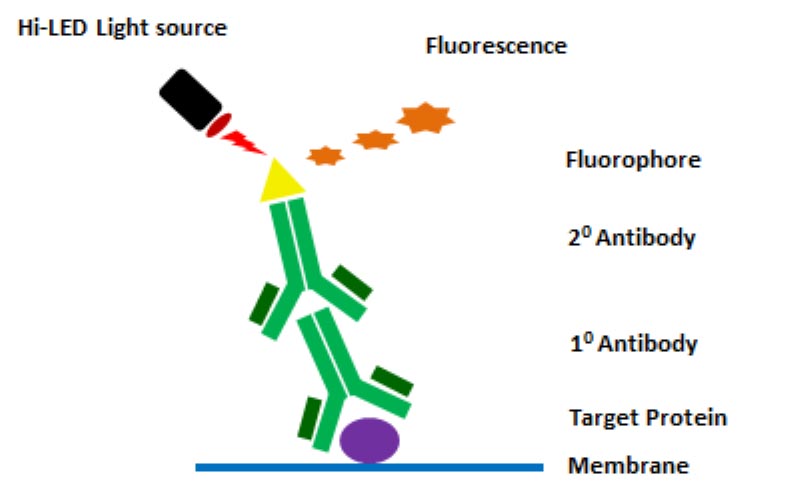

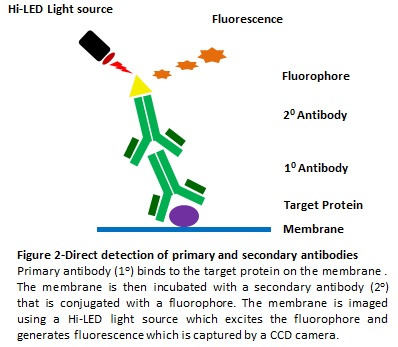

Figure 2: Direct detection of primary and secondary antibodies
Primary antibody (1) binds to the target protein on the membrane. The membrane is then incubated with a secondary antibody (2) that is conjugated with a fluorophore. The membrane is imaged using a HiLED light source that excites the fluorophore and generates fluorescence captured by a CCD camera.

Multiplex Protein Gels

To get away from transferring your proteins to a western blot, you can use secondary antibodies labelled with all the same dyes you would use for fluorescent western blotting directly in the gel to bind to any antibody bound to your target proteins. The dyes fluoresce with RGB or IR lighting so that you can detect fusion proteins and protein-protein in, protein-protein interaction, and RNA interactions directly in your gel.

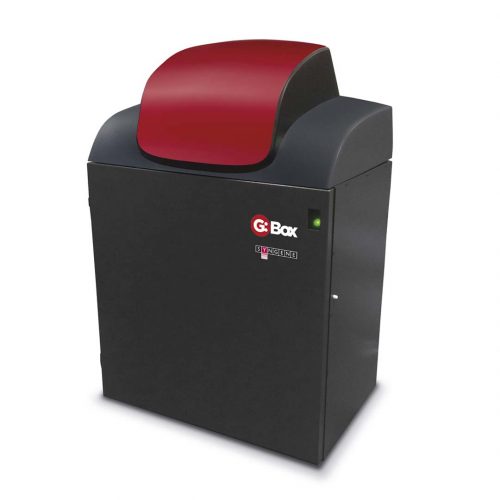

You can rapidly image multiplex fluorescence proteins on western blots or in gels with the G:BOX or G:BOX mini systems using specific filters and HI-LED RGB and IR lighting options. The systems’ GeneSys software automatically selects the best combination of lighting and filters available to image each dye. You can then capture one or multiple images of your blot or gel and overlay different colour images. This means you can produce one complete picture of all your different fluorescent proteins without having to strip and re-probe a blot, making visualising and analysing each protein accurately simple.

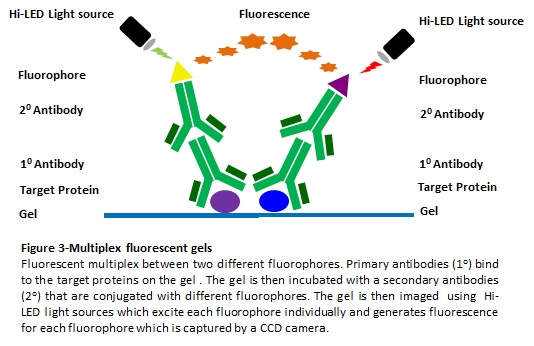

Figure 3: Multiplex fluorescent gels

Fluorescent multiplex between two different fluorophores. Primary antibodies (1) bind to the target proteins on the gel. The gel is then incubated with secondary antibodies (2) conjugated with different fluorophores. The gel is then imaged using HiLED light sources, which excite each fluorophore individually and generates fluorescence for each fluorophore which is captured by a CCD camera.
