Flexible DNA, stain free, autorads analysis.
Intuitive touch screen system.
Compact benchtop size with built in PC.
Powerful
A groundbreaking 5m pixel camera gives exquisite pixel resolution and unrivalled sensitivity in its class. NuGenius XE uses an f/1.2 motor-driven zoom lens to enable perfect gel or blot-size imaging. The maximum viewing area is 20 x 24cm, which is very large for such a small, compact unit.
Flexible
Internal lighting includes a UV transilluminator option for working with DNA gels, stain free and autorads analysis. The overhead LED white lighting is included as standard for easy sample positioning and focusing.
Versatile

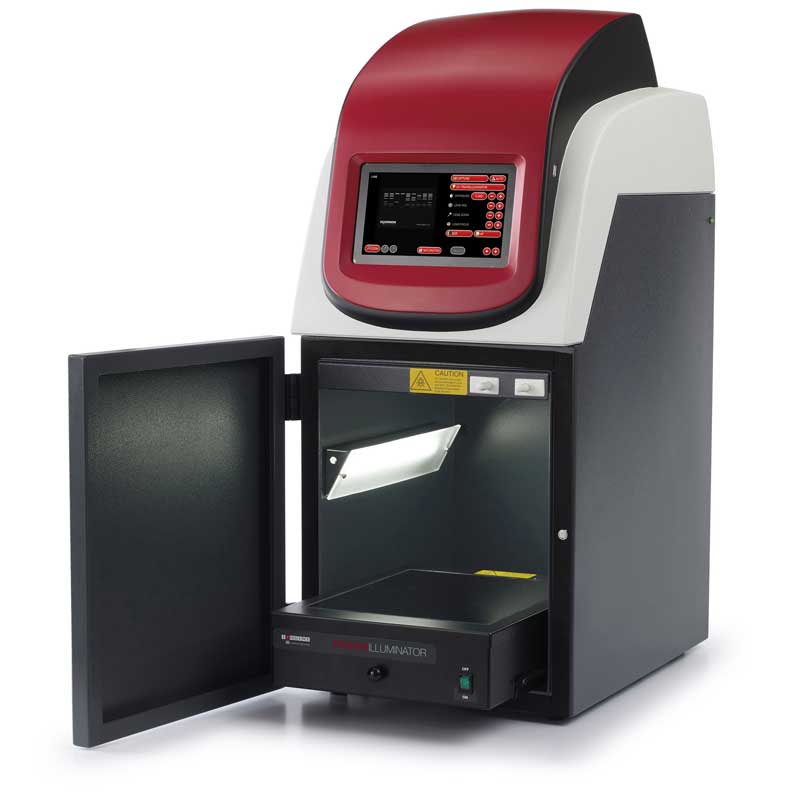

The NuGenius XE has been designed for stain free applications. Its camera enables the sample to be exposed for extended periods. Safely excise your DNA bands from an agarose gel with the darkroom door open using the optional safety shield protecting the user when working with UV.
Intuitive
Images are saved directly to USB or network for easy transfer. Quickly generate quantitative data with GeneTools analysis software. NuGenius XE comes with unlimited copies of GeneTools.
| Image Resolution | 5MP |
|---|---|
| Bit Depth | 12/16 Bit |
| Dynamic Range | 3.6/4.8 OD |
| Lens | 8-48mm F/1.2 |
| Sample Size | 20x24cm |
| Sensor | 1/2.5 Inch |
| Dimensions (HxWxD) mm | 750x310x450 |
| Weight (kg) | 20 |
| Power Input (V) | 100-240 |
| Touch Screen Size | 7" |
| Memory | 80GB |
| OS | Windows 10 Enterprise LTSC |
| USB | 3x USB3 |
| Lighting | White epi, ultra-slim blue LED transilluminator, visible converter screen, UV transilluminator and blue light converter screen |
