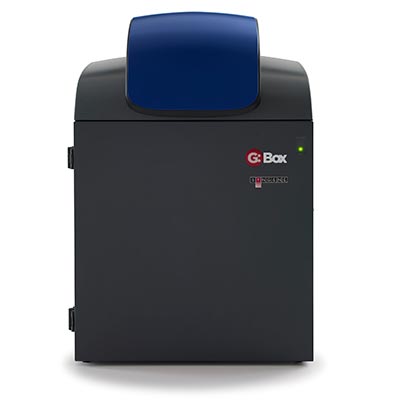

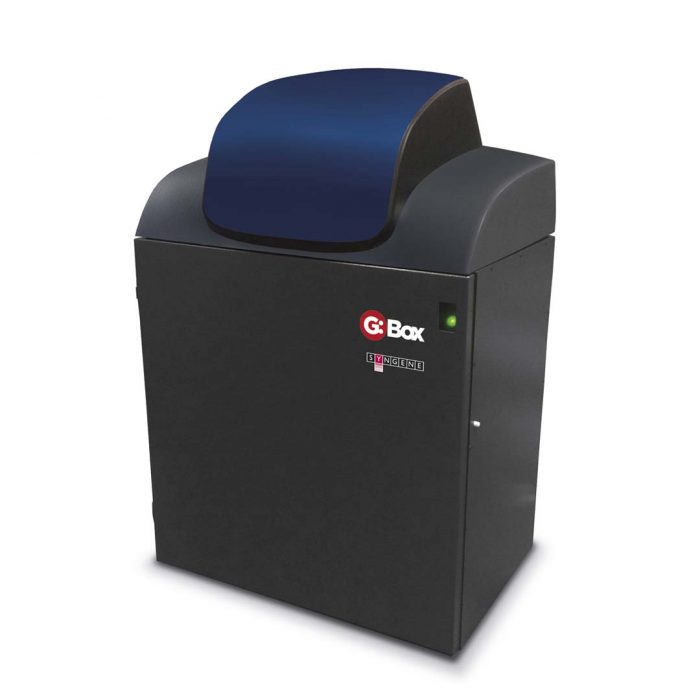

G:BOX Chemi XRQ gel doc system with high resolution, cooled camera and application controlled GeneSys software for fluorescence and chemiluminescence applications


Category: Applications: Fluorescence, Chemiluminescence & Fluorescence
Register to download brochure
Watch Video
2D gels Bioluminescence Chemiluminescence-blots Colony counting Colorimetric blots DNA gels Films GFP plant imaging Infra red imaging Multiplex gels Protein gels Stain free imaging 3 Year warranty CFR part11 ISO 9001:2008 TIFF USB XLS

Cost-efficient chemi imaging and gel doc

For a laboratory that needs hassle-free chemiluminescent detection, as well as routine gel documentation, using the G:BOX Chemi XRQ’s powerful GeneSys software to switch between applications is simplicity itself. Place your chemi blot in, and the system’s cooled camera captures images with a sensitivity equal to film or slide in your gels to generate quality pictures of your DNA and proteins anytime you want.

Featuring a standard darkroom and a 4 million pixel image resolution, the G:BOX Chemi XRQ camera is cooled to provide a low signal to noise ratio with perfect background.

HI-LED lighting options  cover the full spectrum of high intensity blue, green, red and infra-red resulting in faster exposure times and publication quality images.

The G:BOX Chemi XRQ is a cost-effective alternative to laser based technology offering a faster workflow for imaging complex multiplex fluorescent gels and blots.

The system is controlled by GeneSys application driven image capture software and comes complete with unlimited copies of GeneTools analysis software.


Gel imaging for fluorescence and chemiluminescence

  • High quantum efficiency (QE) camera
    Picogram detection
  • Multiplex imaging of up to 5 different channels with UV, blue and RGB HI-LED lighting options
    Easily switch between blot or gel imaging
  • Stain free imaging capability
    Capture images of stain free acrylamide gels and many more
  • Auto-exposure
    Perfectly exposed chemi images without film
  • Excellent signal to noise ratio
    No annoying backgrounds on your blots
  • Protocol driven image capture
    No camera expertise needed for great results
  • Motor driven lens and filter wheel
    Simple, automated set up
  • Reproducible and quantifiable data
    Accurate results time after time
  • CFR21 Part 11 compliant
    Fully traceable results suitable for regulatory audits
  • GeneSys application driven image capture software
    Contains extensive database of dyes and imaging protocols. All you need to know is the type of gel you’re using and GeneSys automatically selects the optimal lighting and filters to produce the perfect image
  • GeneTools analysis software (unlimited copies)
    Analyse data at your own computer



Image resolution (pixels m) 4
Effective resolution (pixels m) 16
A/D 16 bit
Greyscales 65536
Quantum efficiency @ 425nm 73%
Cooling Peltier
Lens (motor driven) Motor driven zoom 1.2
Filter wheel (7 position motor driven) Yes
UV filter Yes
Use with external PC Yes
Standard Yes
Epi LED white lights Yes
Epi UV 302nm Optional
Epi red LED module Optional
Epi blue LED module Optional
Epi green LED module Optional
Epi red LED module M series for multiplexing Optional
Epi green LED module M series for multiplexing Optional
Epi blue LED module M series for multiplexing Optional
Epi IR LED module Optional
IR multiplexing kit (680-800nm) Optional
HI-LED RGB Optional
HI-LED RIR Optional
Visible light converter 33 x 31cm Optional
White light pad for visible stains (20 x 14cm) Optional
UltraBright LED blue light transilluminator 20 x 16cm Optional
UV transilluminators Optional
Max image area (cm) 30.5 x 22.7
Min image area (cm) 5.1 x 3.8
W x H x D (cm) 57 x 84 x 45
Weight (kg) 37
Voltage 115v/240v



Dr Kevin Feldheim, Laboratory Manager, Pritzker Laboratory for Molecular Systematics and Evolution, The Field Museum of Natural History, Chicago, USA

“We’ve had a G:BOX Chemi for over two years and we use it for analysis of DNA fragments to examine relationships between taxa. We compared the G:BOX Chemi with three others from leading manufacturers and chose this system because it makes gel documentation very straightforward and offers the best performance.

We have been very pleased with the G:BOX Chemi and by Syngene’s responsive technical support, so when we needed another gel doc system we knew purchasing a second G:BOX was the right decision”.

Dr Mark K Larson, Assistant Professor, Biology Department, Augustana College, South Dakota, USA

“We use our G:BOX Chemi HR16 regularly for teaching students how to visualize DNA and proteins on gels and proteins on Western blots. The system is simple to work with and the students can use it with very little training. Since the software is so intuitive, it is almost impossible for them to get things wrong!”

“We have also found the real-time, on-line technical support service is excellent. As we’re a bit off the beaten track here, we cannot always wait for an engineer or rep to come out and it’s very reassuring to know Syngene support staff can help us remotely to rapidly resolve any technical questions which arise.”

Professor Darek Gorecki, Director of Research, School of Pharmacy & Biomedical Sciences, University of Portsmouth, Portsmouth, UK

“We know Syngene systems are reliable as we have had a Syngene gel doc for years which has survived being used to its absolute limits. When we needed a second image analyser for imaging Westerns of protein associated with muscular dystrophy, we looked at others but finally stayed loyal to Syngene and installed a G:BOX iChemi XT.”

“This was a great decision because the G:BOX iChemi XT is not as expensive as many that can image fluorescent Westerns, yet the system can detect low levels of proteins using ECL imaging, as well as overlay fluorescent Westerns. This has allowed us to compare different labels directly on the same blot, and more importantly, to have total confidence that the qualitative data on up and down-regulated proteins produced by the G:BOX iChemi XT is accurate.”

Dr Jared Cartwright, Laboratory Head, Technology Facility, University of York, York, UK

“We are a core protein production facility, so we clone and express a wide range of proteins. We chose to install a G:BOX chemiluminescence imaging system in 2008 because of the three we assessed it is the most flexible, has the most user-friendly software and produces a data set that is much simpler to manage for chemiluminescent Westerns than autoradiography.”

“Since then, we’ve seen more and more researchers in the university switching away from using X-ray film for their chemiluminescent blots and over to the G:BOX chemiluminescence imager, which I think shows how easy this system is to use.”

Dr Che-Hsiung Liu, Research Associate, Department of Physiology, Development & Neuroscience, University of Cambridge, Cambridge, UK

“We work with up and down-regulated genes and proteins from fruit fly eyes, which can generate very weak chemiluminescent signal. We stain our DNA with SYBR SafeTM DNA gel stain, protein gels with Coomassie® Blue R and immunoblots with ECL PlusTM, so we have to have an imager that can handle all these applications.”

“After reviewing four imaging systems, we decided to install the G:BOX iChemi XR because it gave us the value of essentially having two systems in one and the GeneTools analysis software is, in my opinion, the best on the market.”

Hannah Cable, Development Scientist, Abcam, Cambridge, UK

“We need quality control methods that are both fast and accurate to make sure we deliver the best antibodies. We used an infrared fluorescence detector for imaging our chemiluminescent Western blots but found it took too long to get the data so in 2007 we installed a G:BOX Chemi XT16 to see if CCD imaging would increase our throughput.

We were delighted to find the G:BOX Chemi XT16 generated accurate results in a fraction of the time and as it costs half the price of an infrared detector it made sense to install another three in 2008. Now we use four G:BOX Chemi XT16 systems to image more than 200 Western blots every week. Obtaining the data is now so much quicker and easier and we are supplying more scientists than ever with high-quality antibodies thanks to our G:BOX Chemi XT16 systems”.

Dr Clare Gallon, Research Associate, Imperial College London, London, UK

“Our G:BOX Chem HR16 has been fantastic. The system is in constant use for analysing both gels and Western blots and does at least 10 runs every day. We have been so impressed with our Syngene image analyser and the excellent technical support team’s can do attitude that we are looking to purchase another Syngene G:BOX specifically for proteomics.”




Syngene offers a range of UV transilluminators suitable for all your imaging needs. Transilluminators are available in 230V 50Hz, 230V 60Hz (-E60), 115V 60Hz (-A), 115V 60Hz (-ACA) and 100V 50/60Hz (-J). Available wavelengths are short wave (254nm, 2020S or 2530S), medium wave (302nm, 2020M or 2530M) and long wave (365nm, 2020L or 2530L).

UltraBright-LED transilluminator

Blue light transilluminators are often used as an alternative to a UV transilluminator when users wish to use ‘safe dyes’ instead of Ethidium Bromide. A blue light transilluminator is a ‘safe’ light source, in that the user is not exposed to harmful UV radiation and samples are free from photonicking. The UltraBright-LED transilluminator can be used instead of the UV transilluminator in all Syngene G:BOX systems.

UltraBright-LED transilluminator can be used with gels up to 20 x 16cm for use in the G:BOX series. This model uses side mounted 470nm LED arrays for illumination.

UV-blue light converter screens

These come in two sizes 21cm x 26cm and 25cm x 30cm and are used to change harmful UV into blue light. They are made of scratch resistant plastic and are easy to retrofit onto a UV transilluminator.

Visible light converter screens

These come in two sizes 30.5cm x 33cm and 23.5cm x 30cm and are used to change UV light into visible light, ideal for imaging Coomassie Blue and Silver Stained gels.


The Epi UV module can be fitted to any G:BOX Chemi darkroom (those produced after July 2010). The module fits above the standard LED white light module which is standard on all G:BOX Chemi systems. The Epi UV module can have either a 254nm, 365nm or 302nm tube. Either one or two modules can be fitted to each darkroom.


The filter wheel takes the 72mm range of filters.


The option to add a full spectrum of high intensity blue, green, red and infra-red HI-LEDs that are up to 200 times brighter than standard LEDs, offering faster exposure times and cost-effective imaging for a wide range of fluorescence gel and blot applications.

The excitation ranges of the HI-LEDs (+/- 10nm)

  • UV – Peak 365nm
  • Blue – Peak 470nm
  • Green – Peak 525nm
  • Red – Peak 623nm
  • Far Red – Peak 658nm
  • IR – Peak 740nm


Any printer with appropriate Windows drivers can be attached to the G:BOX Chemi. We recommend an A6 thermal printer such as Sony or Mitsubishi. These USB printers will “plug and play” with the G:BOX Chemi and require minimal set up. They will print hard copies of images in under 5 seconds on long life glossy thermal paper to give photographic quality images.

Thermal paper

Available as Matt or Glossy.

UV tubes

Short wave 8W, 254nm, Medium wave 8W, 302nm, Long wave 8W 365nm available.

IQ/OQ/PQ procedures

More and more laboratories require IQ/OQ/PQ verification these days. Syngene’s IQ/OQ/PQ procedures take the user through each step in the verification of a Syngene system in meeting the demands of the laboratory, regulatory compliances and standard operational procedures (SOP). These simple procedures allow the user to verify that a system meets defined installation, quality and performance specifications.

Installation Qualification (IQ)
This verifies that when a system is unpacked it conforms with all purchasing, shipping and unpacking documents. Once this procedure has been followed the system is then ready for the operational check process.

Operational Qualification (OQ)
This procedure establishes if the system meets all the operation and functionality specifications. An operational test is also included at this stage.

Performance Qualification (PQ)
A performance check will establish if the system meets the specification for the nature of the purpose it was intended for. This is verified by using a simple target to establish if the system can meet performance criteria.

Each set of IQ/OQ/PQ documents contains a complete set of procedures and checklists for following the verification steps. Included with each ‘pack’ is a simple calibration device (target image) so that the performance of the system can be checked against the PQ requirements. Each set of documents is unique to a particular system and has to be ordered with the system itself. The document pack has full instructions for use and implementation.

Who does this?
Customer – typically a customer can perform these tests by themselves. Their own internal QC department will be familiar with these processes.

Syngene or its distributors
Trained Syngene personnel or trained distributors can also perform the IQ/OQ/PQ procedures, normally at a nominal charge.
