Combination PCR Workstation

Combination PCR Workstation

Category: Safety Cabinets and Enclosure Workstations

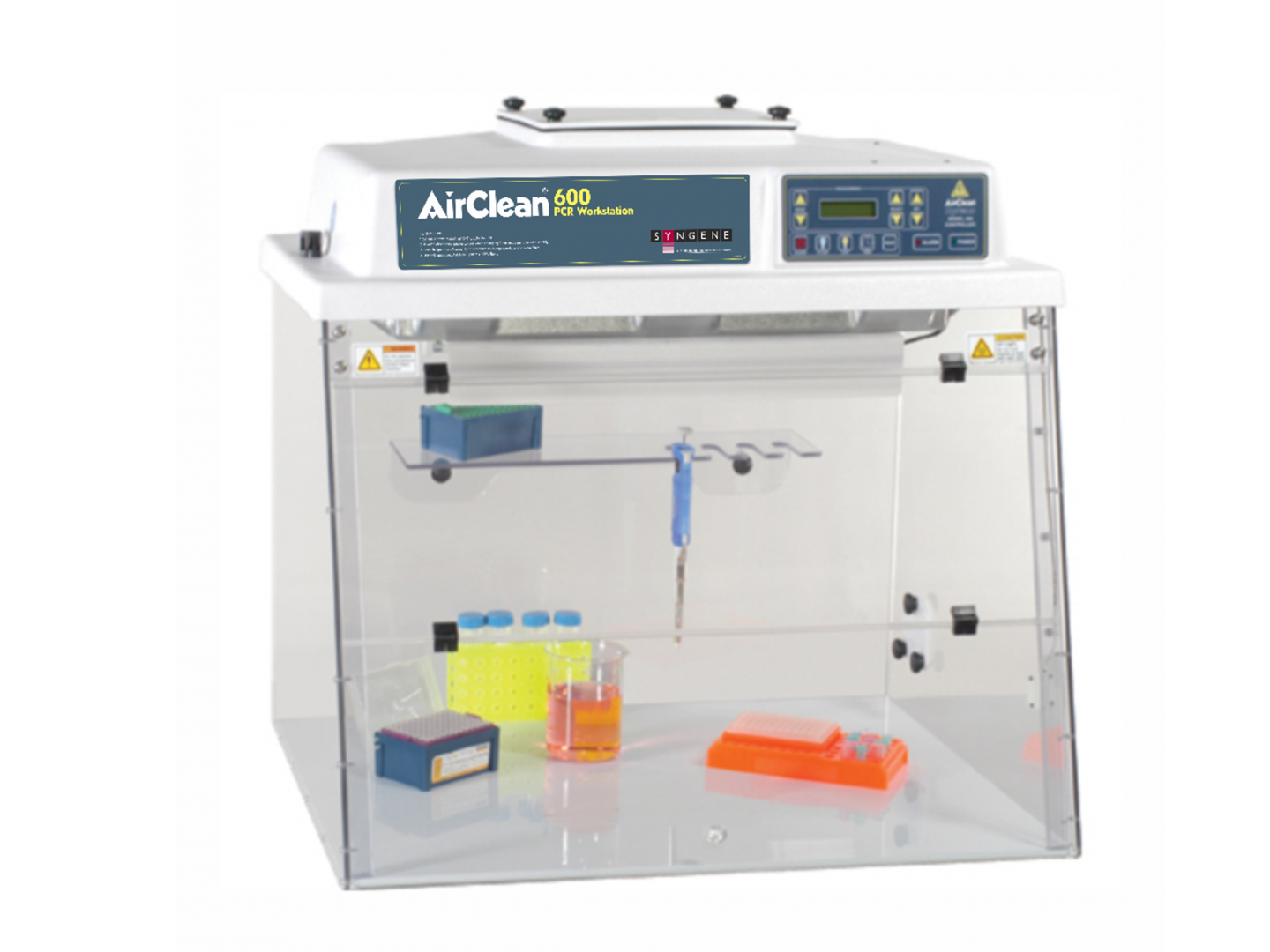

Syngene’s AC600 Series PCR Workstations combine ISO 5 HEPA-filtered air with UV light irradiation for the ultimate DNA/RNA manipulation and amplification work area. Cross-contamination during amplification of DNA and RNA can lead to results that are inaccurate, costing the lab technician valuable time and reagents. PCR Workstations minimize this risk by keeping airborne contaminants away from samples and irradiating work surfaces and tools between amplifications.

https://www.cdc.gov/coronavirus/2019-ncov/lab/rt-pcr-detection-instructions.html

RT-PCR Panel for Detection 2019-Novel Coronavirus

Purpose: This document describes the use of real-time RT PCR (rRT-PCR) assays for the in vitro qualitative detection of 2019-Novel Coronavirus (2019-nCoV) in respiratory specimens and sera. The 2019-nCoV primer and probe sets are designed for the universal detection of SARS-like coronaviruses (N3 assay) and for specific detection of 2019-nCoV (N1 and N2 assays).

Protocol Use Limitations: The rRT-PCR assays described here have not been validated for platforms or chemistries other than those described in this document.

Combination PCR workstation: https://www.syngene.com/product/combination-pcr-workstation-2/

Features

UVTect™ microprocessor controller
No installation required – plugs directly into a standard 110V or 220V electrical outlet
ISO 5 vertical laminar flow air
No ductwork required
UV shelf with built-in pipettor holder
Seamless plastic design -no joints or gaps in construction
Lab event timer
Available in standard height or tall version
Clear polycarbonate shell for 360° visibility
Extremely quiet operation < 49dBA
UV and fluorescent lights
Digital UV light timer :01-59 minutes
Access port for electrical cords

Safety Features

Automatic sash switch turns blowers off when sash is closed, maintaining an air barrier
Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
Filter safety lockout to ensure correct filter replacement
ISO 5 tested
Low airflow alarm warns the user both visually and audibly
Overlapping polycarbonate sash to prevent UV light exposure
Polycarbonate and polypropylene design reflects UV energy
Real time monitoring of installed filtration bed
Sash safety switch automatically turns off UV light and activates the blower when sash is raised
Shipped fully assembled
Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1

Specifications

External

Product Number	W x D x H (inches)	W x D x H (mm)
SYN-32PWLF-E	32 x 24 x 30	813 x 610 x 762
SYN-32PWTLF-E	32 x 24 x 39	813 x 610 x 991
SYN-48PWLF-E	48 x 24 x 32	1220 x 610 x 813
SYN-48PWTLF-E	48 x 24 x 42	1220 x 610 x 1067

Internal

Product Number	W x D x H (inches)	W x D x H (mm)
SYN-32PWLF-E	31 x 23 x 18	787 x 584 x 457
SYN-32PWTLF-E	31 x 23 x 27	787 x 548 x 686
SYN-48PWLF-E	47 x 23 x 18	1194 x 584 x 457
SYN-48PWTLF-E	47 x 23 x 29	1194 x 584 x 737

Accessories

Product Number	Type	Description
SYN-49AUVBL4	PCR accessory	Replacement UV bulbs, pack of 4
SYN-49FHEPA	HEPA filter	HEPA filter, 99.997% efficient at 0.3 microns
SYN-49FHEPA18	HEPA filter	HEPA filter, 99.997% efficient at 0.3 microns
SYN-49FLFPRE	Pre-filter	Pack of 12, prefilters
SYN-49FLFPRE7	Pre-filter	Pack of 12, prefilters

Combination PCR Workstation - For the ultimate DNA/RNA manipulation and amplification work area
