Syngene’s dead air boxes provide a circulation-free environment for the amplification and manipulation of DNA/RNA. Each dead air box is standard with UVTect microprocessor controller and a 254nm ultraviolet light source for irradiation between amplifications. A safety interlock switch disables the UV light when the sash is raised, preventing operator exposure. Seamless design and UV-reflective construction materials further ensure no harmful UV energy escapes the enclosure.

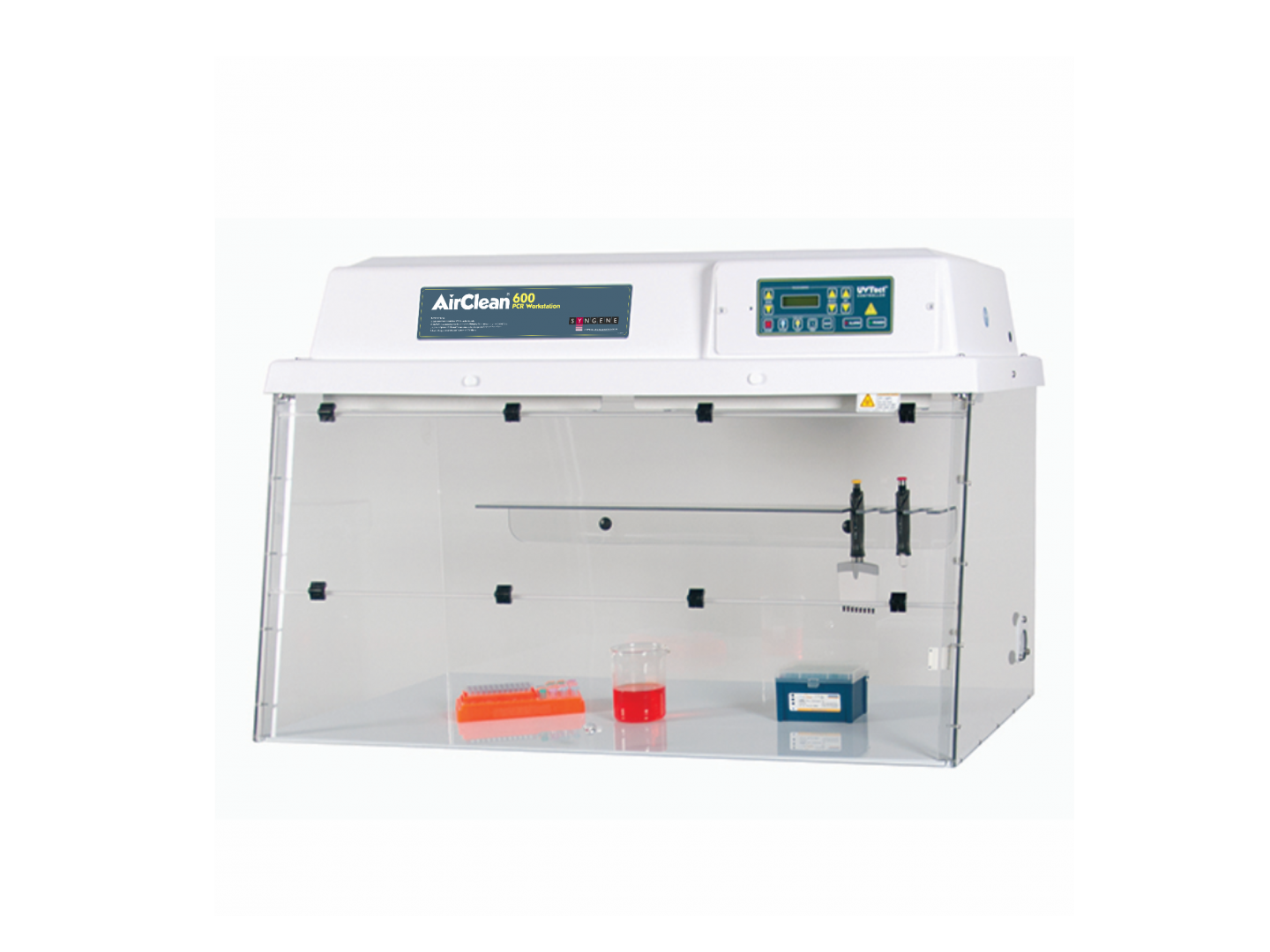

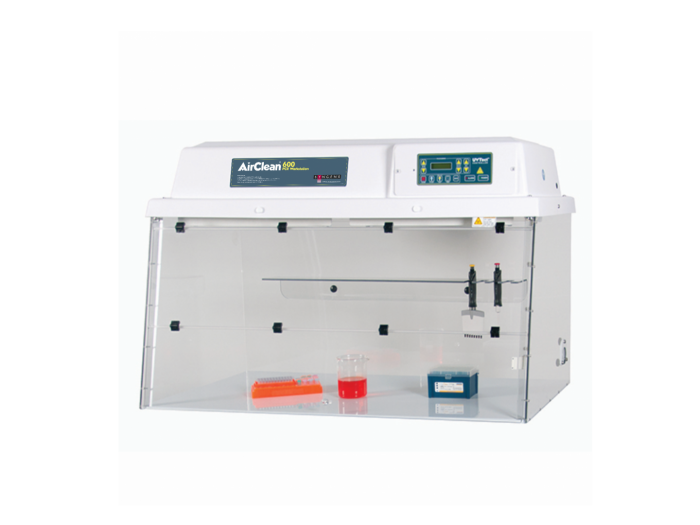

Dead Air Box
Features
- UV and fluorescent lights
- No ductwork required
- No installation required – plugs directly into a standard 110V or 220V electrical outlet
- Seamless plastic design – no joints or gaps in construction
- UV shelf with built-in pipettor holder
- UVTect™ microprocessor controller
- Digital UV light timer :01-59 minutes
- Lab event timer
- Access port for electrical cords
Safety Features
- Polycarbonate and polypropylene design reflects UV energy
- Shipped fully assembled
- Overlapping polycarbonate sash to prevent UV light exposure
- Sash safety switch automatically turns off UV light when sash is raised
- Electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
Specifications
External
| Product Number | W x D x H (inches) | W xD x H (mm) |
| SYN-32DBC-E | 32 x 24 x 30 | 813 x 610 x 762 |
| SYN-AC632TDBC 220-E |
32 x 24 x 39 | 813 x 610 x 991 |
| SYN-48DBC-E | 48 x 24 x 30 | 1219 x 610 x 762 |
Internal
| Product Number | W x D x H (inches) | W x D x H (mm) |
| SYN-32DBC-E | 31 x 23 x 18 | 787 x 584 x 457 |
| SYN-AC632TDBC 220-E |
31 x 23 x 39 | 787 x 584 x 610 |
| SYN-48DBC-E | 47 x 23 x 23 | 1194 x 584 x 584 |
