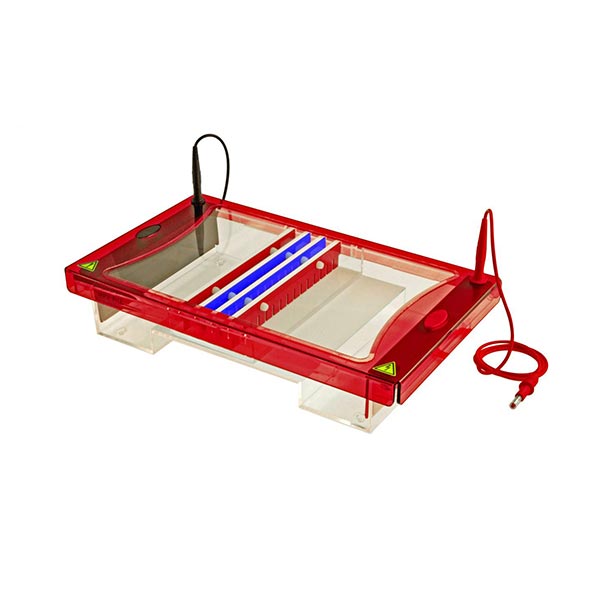

SynMaxi - Maxi horizontal electrophoresis system

SynMaxi

Key features:

  • Now available with 20 x 25cm, 20 x 20cm, 20 x 15cm or 20 x 10cm gel trays
  • Run up to 550 samples
  • Low buffer volumes
  • Ideal for extended separations
Categories: ,
Register to download brochure
WHERE TO BUY
GO BACK

Overview

The SynMaxi is primarily designed for resolution of high numbers of samples, such as from Cloning or PCR. The SynMaxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.

Four gel tray sizes are available; 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs of up to 40 samples facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel. Casting dams allow gels to be rapidly cast externally while the SynMaxi unit is in use for gel running.

Ordering Information

Ordering Information
SYNMAXI10 20 x 10cm Gel Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
SYNMAXI15 20 x 15cm Gel Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
SYNMAXI20 20 x 20cm Gel Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
SYNMAXIDUO 20 x 10 & 20 x 20cm Gel Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
SYNMAXI25 20 x 25cm Gel Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides

Specifications



SKU SynMaxi10 SynMaxi15 SynMaxi20 SynMaxi25 SynMaxiDuo
Unit dimensions (cm) 23 x 39.5 x 9 23 x 39.5 x 9 23 x 39.5 x 9 23 x 39.5 x 9 23 x 39.5 x 9
Maximum sample capacity 200 350 450 550 450
Base buffer volume 1200 1200 1200 1200 1200
Buffer recirculation Requires MS20LID-BP Requires MS20LID-BP Requires MS20LID-BP Requires MS20LID-BP Requires MS20LID-BP
Flexicaster options MS15/20-FC, MS26-FC MS15/20-FC, MS26-FC MS15/20-FC, MS26-FC MS15/20-FC, MS26-FC MS15/20-FC, MS26-FC
Typical running conditions 100-150V, 60-90 minutes 100-150V, 60-90 minutes 100-150V, 60-90 minutes 100-150V, 60-90 minutes 100-150V, 60-90 minutes
Bromophenol blue migration rate ~4-6.5cm/h at 100-150V ~4-6.5cm/h at 100-150V ~4-6.5cm/h at 100-150V ~4-6.5cm/h at 100-150V ~4-6.5cm/h at 100-150V
Gel dimensions 20 x 10 20 x 15 20 x 20 20 x 25 20 x 10 & 20 x 20

Accessories

SynMaxi – 20 x 10cm gel tray
SynMaxi – 20 x 15cm gel tray
SynMaxi- 20 x 20cm gel tray
SynMaxi – 20 x 25cm gel tray
SynMaxi – gel tray dams
Flexicasters?????
SynMaxi – loading guides
SynMaxi – viewing platform
SynMaxi – positive electrode
SynMaxi – negative electrode
SynMaxi – 20cm UV gel scoop
SynMaxi combs
SynMaxi – cool-pack and platform
