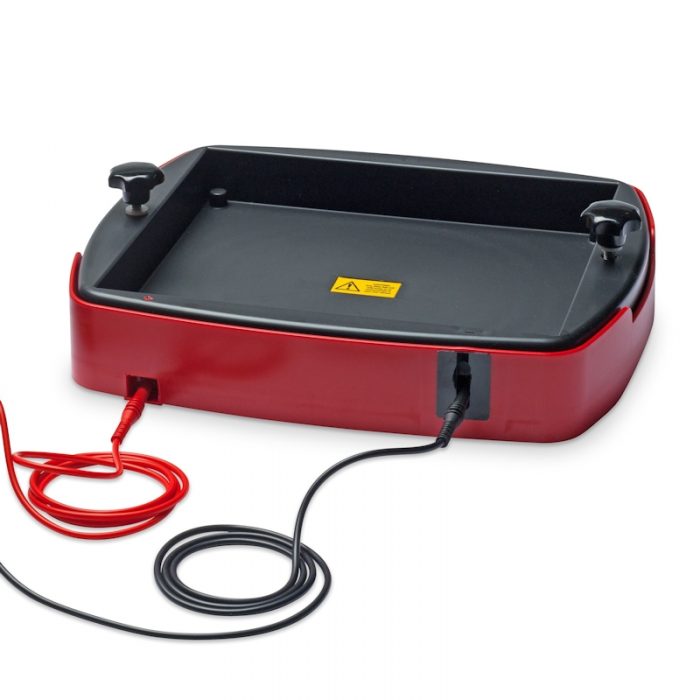

Semi dry blotter - DNA, RNA and protein blotting

Semi dry blotter

Key features:

  • Rapid transfer times
  • Western, Southern and Northern Blots
  • Economic Transfers due to very low buffer volumes
  • Screw down lid
  • Gels from 0.25 up to 10mm thick can be blotted
  • Uniform heat dispersion
  • Long life electrodes

Overview

These Semi Dry Blotters offer rapid transfer times for DNA, RNA and protein blotting typically 15 to 30 minutes. All units can be used for all types of blotting: Western, Southern and Northern via uncomplicated buffer and set up procedures and are compatible with gel thicknesses from 0.25 up to 10mm without the need for additional equipment. Each unit is compatible with their respective SynPAGE vertical gel system.

Semi Dry Blotting has the added benefit of economic transfers. Due to very low buffer volumes typically only a few millilitres of buffer are required per transfer. These Semi-Dry Blotters utilise a screw down lid, which secures the blot sandwich and allows complete control of pressure ensuring even transfer. The electrodes, comprising platinum coated anode and stainless steel cathode, will exhibit practically no corrosion and so provide many years of trouble free use.

Uniform heat dispersion across the blot sandwich ensures stable transfer times and no heat induced sample loss or transfer distortions. Being translucent, it allows viewing of the blot sandwich to ensure correct positioning and transfer is occurring correctly. Electrode plates are fully separated to prevent arcing or damage.

Specifications

SKU SD10 SD10-PP3AMP SD20 SD20-PP3AMP
Unit dimensions (cm) 16.5 x 15 x 5.5 Yes 26 x 26 x 7 Yes
Capacity 10 x 10cm Western blotting 20 x 20cm Western blotting
Base buffer volume 5 POWERPRO3AMP, SD10 20 POWERPRO3AMP,SD20
Blotter type Semi-dry Semi-dry

Ordering information

Ordering information

SYNSD10 10x10cm capacity
SYNSD10-PP3AMP 10x10cm capacity and power supply powerpro 300
SYNSD20 20x20cm capacity
SYNSD20-PP3AMP 20x20cm and power supply powerpro3AMP
