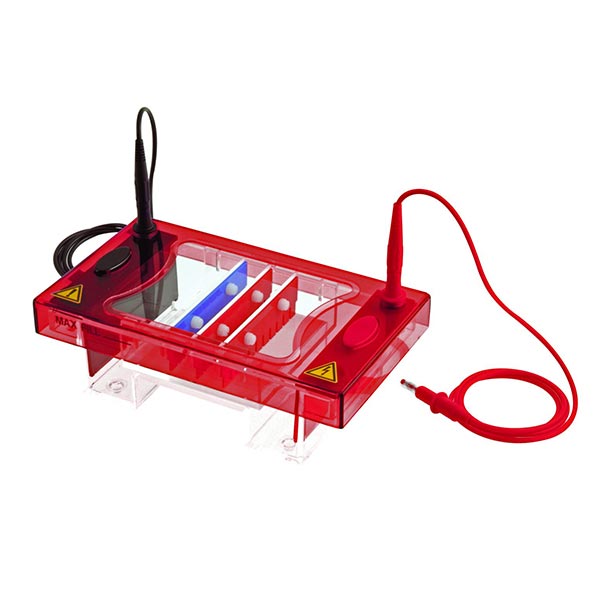

SynMidi - Midi horizontal electrophoresis system

SynMidi

Key features:

  • Available with 10 x 7cm, 10 x 10cm or with both gel trays
  • Run up to 100 samples
  • Low buffer volumes
  • Ideal for rapid electrophoresis
Categories: ,
Register to download brochure
WHERE TO BUY
GO BACK

Overview

With gel tray options of 10 x 7cm and 10 x 10cm, the SynMidi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the SynMini, without a significant increase in buffer or gel volumes.

A maximum of 100 samples per gel can be resolved, making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths. Loading guides allow easy well identification and sample loading. Scoops are also available as an option to allow safe transfer of gels.

Ordering Information

Ordering Information
SYNMIDI7 SynMidi, 10 x 7cm Gel tray, 2 x 16 sample combs, loading guides and dams
SYNMIDI10 SynMidi, 10 x 10cm Gel tray, 2 x 16 sample combs, loading guides and dams
SYNMIDIDUO SynMidi, 10 x 7cm & 10 x 10cm Gel tray, 2 x 16 sample combs, loading guides and dams



Specifications

SKU SYNMIDI10 SYNMIDI17 SYNMIDIDUO
Unit dimensions (cm) 12.5 x 22 x 9 12.5 x 22 x 9 12.5 x 22 x 9
Maximum sample capacity 100 50 100
Base buffer volume 300 300 300
Buffer recirculation No No No
Flexicaster options SYN7/10-FC, SYN15/20-FC, SYN26-FC SYN7/10-FC, SYN15/20-FC, SYN26-FC SYN7/10-FC, SYN15/20-FC, SYN26-FC
Typical running conditions 90V, 45-60 minutes 90V, 45-60 minutes 90V, 45-60 minutes
Bromophenol blue migration rate ~4-5cm/h at 90V ~4-5cm/h at 90V ~4-5cm/h at 90V
Gel dimensions 10 x 10 10 x 7 10 x 7 & 10 x 10

Accessories

SynMidi – 10 x 7cm gel tray
SynMidi – 10 x 10cm gel tray
SynMidi – positive electrode
SynMidi – negative electrode
SynMidi – gel tray dams
Flexicasters
SynMidi – loading guides
SynMidi – viewing platform
SynMidi – cool pack and platform
SynMidi – 10cm gel scoop
SynMidi combs
Electrophoresis cable (black and red)
