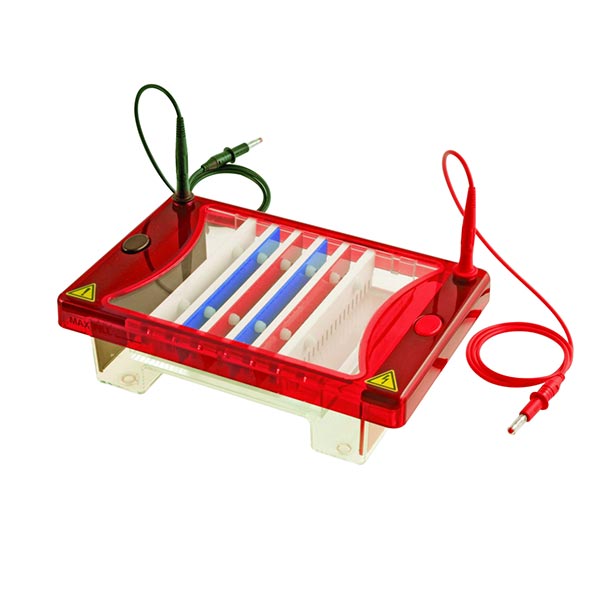

SynChoice - Wide midi horizontal electrophoresis system

SynChoice

Key features:

  • Three tray options
  • Run up to 210 samples
  • Low buffer volumes
  • Multichannel pipette compatible combs for speed loading
Categories: ,
Register to download brochure
WHERE TO BUY
GO BACK

Overview

The SynChoice offers a wide degree of versatility. Three tray options are available; 15 x 7cm, 15 x 10cm and 15 x 15cm  – allowing the choice of one, two or all three gel length options at the time of purchase. Further purchases of additional accessories are no longer required. Maximising comb and tray options allow up to 210 samples to be resolved per gel. The 15cm total run length allows restriction fragment or other close MW sample bands to be easily separated and identified. Speed loading is accomplished using 10, 14, 16, 18, 28 or 30 sample multi-channel pipette compatible combs.

Fabricated SynChoice stretch units are available with optional 15 x 20cm and 15 x 25cm gel trays and four 28-sample combs for those researchers wanting to perform higher resolution separation of more samples over a longer distance. SynChoice Trio includes all 3 tray sizes for optimum versatility and value.

SynChoice ST

A “stretched” version of the SynChoice, this system is perfect for extended high resolution separations of samples from 96-well microplates and blocks, using its 15 x 20cm and 15 x 25cm gel trays and four 28-sample multichannel compatible combs. It may also be used for routine preparatory techniques.

Ordering Information

Ordering Information
SYNCHOICE7 15 x 7cm Gel tray, 2 x 20 sample combs, loading guides and dams
SYNCHOICE10 15 x 10cm Gel tray, 2 x 20 sample combs, loading guides and dams
SYNCHOICE15 15 x 15cm Gel tray, 2 x 20 sample combs, loading guides and dams
SYNCHOICETRIO 15 x 7,10 & 15cm Gel tray, 2 x 20 sample combs, loading guides and dams
SYNCHOICETRIO15 3 x 15cm Gel tray, 2x 20 sample combs, loading guides and dams
SYNCHOICEST20 15 x 20cm Gel tray, 4 x 28 sample combs, loading guides and dams
SYNCHOICEST25 15 x 25cm Gel tray, 4 x 28 sample combs, loading guides and dams



Specifications



SKU SYNCHOICE10 SYNCHOICE15 SYNCHOICE7 SYNCHOICEST20 SYNCHOICEST25 MSCHOICETRIO MSCHOICETRIO15
Unit dimensions (cm) 17.5 x 26.5 x 9 17.5 x 26.5 x 9 17.5 x 26.5 x 9 17.5 x 41 x 9 17.5 x 41 x 9 17.5 x 26.5 x 9
Maximum sample capacity 140 210 70 280 350 210
Base buffer volume 500 500 500 1000 1000 500
Buffer recirculation Requires SYN15LID-BP Requires SYN15LID-BP Requires SYN15LID-BP Requires SYN15STLID-BP Requires SYN15STLID-BP Requires SYN15LID-BP
Flexicaster options SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC SYN15/20-FC, SYN26-FC
Typical running conditions 90-150V, 60-90 minutes 90-150V, 60-90 minutes 90-150V, 60-90 minutes 100-150V, 60-90 minutes 100-150V, 60-90 minutes 90-150V, 60-90 minutes
Bromophenol blue migration rate ~4-7cm/h at 90-150V ~4-7cm/h at 90-150V ~4-7cm/h at 90-150V ~4-6cm/h at 100-150V ~4-6cm/h at 100-150V ~4-7cm/h at 90-150V
Gel dimensions 15 x 10 15 x 15 15 x 7 15 x 20 15 X 25 15 x 7 & 15 x 10 & 15 x 15

Accessories

SynChoice – 15 x 17cm gel tray
SynChoice – 15 x 10cm gel tray
SynChoice – 15 x 15cm gel tray
Flexicasters
SynChoice – gel tray dams
SynChoice – positive electrode
SynChoice – negative elecrode
SynChoice – loading guides
SynChoice – viewing platform
SynChoice – 15cm UV gel scoop
SynChoice – cool-pack and platform
SynChoice combs
