PowerPRO 300 - Power supply

PowerPRO 300

Key features

  • Perfect for routine electrophoresis
  • 300V, 700mA., 150W
  • 5 pairs of outlets for multiple gel tanks
Categories: ,
WHERE TO BUY
GO BACK

Overview

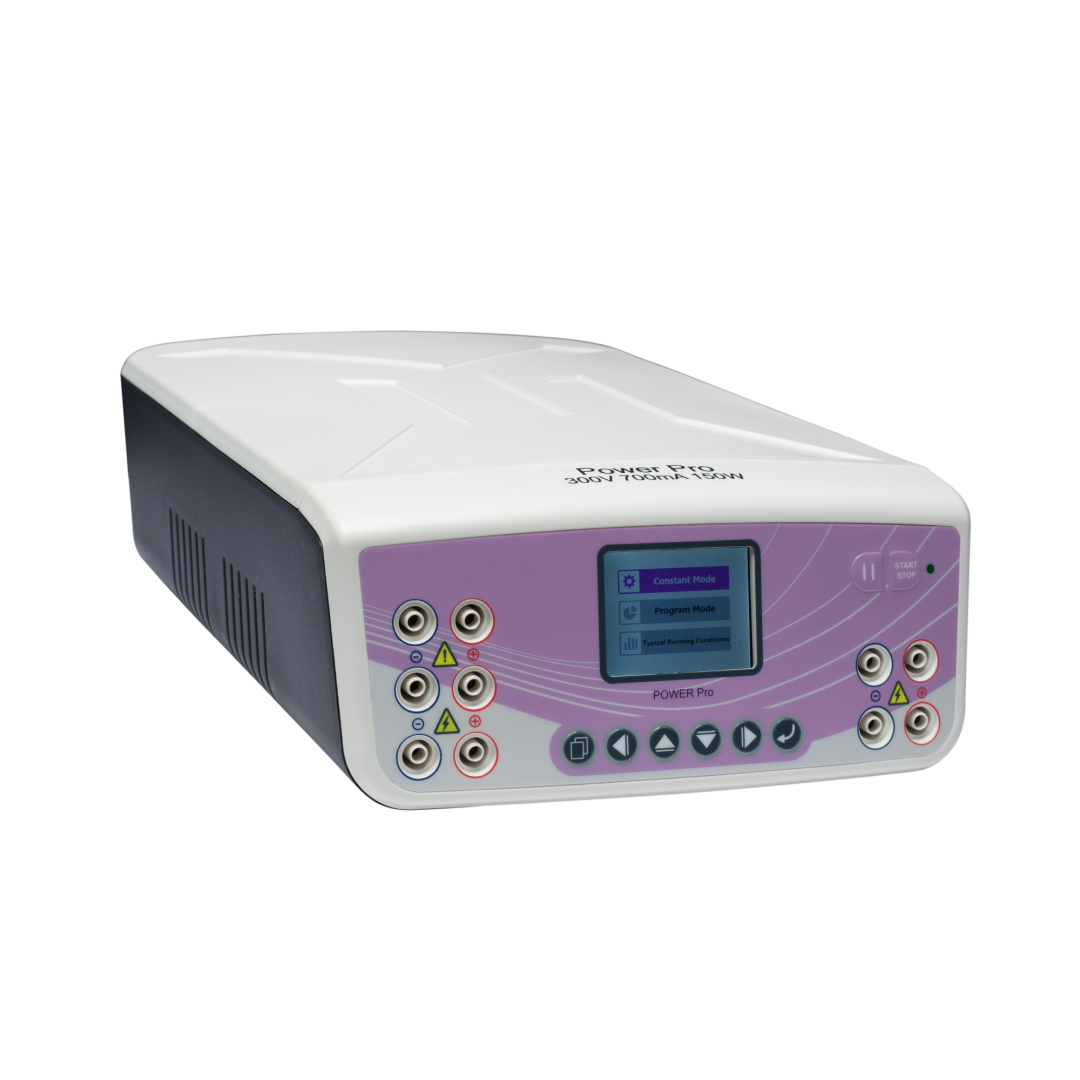

The PowerPro 300 is a versatile multi-function power supply suitable for a wide range of electrophoresis applications. At 300V, 700mA and 150W the PowerPro 300 has nearly twice the current and power of the market leading equivalent unit. Perfectly suited for use with Syngene’s SynMini, SynMidi, SynChoice, SynMaxi range of horizontal electrophoresis systems and SynPAGE Mini vertical electrophoresis systems.

The PowerPro 300 even has built in pre-set protocols from running each of Syngene’s electrophoresis systems, and allows users to create and save protocols for their own systems. A 2.4” TFT-LCD Screen displays the current running parameters and allows the user to browse pre-set and saved protocols.

The PowerPro 300 can be operated at constant voltage, constant current or constant power and can store up to 30 programmes with up to 6 steps each. The convenient pause/resume key allows any run to be temporarily halted for inspection of the gel and restarted from the same position. The PowerPro 300 is the ideal power supply for:

  • Routine horizontal electrophoresis using SynMini, SynMidi, SynChoice, SynMaxi
  • Vertical Electrophoresis using SynPAGE Mini

Specification

Unit dimensions (cm) 21.5 x 33.5 x 10.4
Weight (kg) 2.1
Construction Flame retardant ABS faceplate
Timer 1 – 999 mins
Resolution 1V, 1mA
Input voltage 100-240V; 47-60Hz, 200W
Operating temperature 4℃~ 40℃
Operating environment ≤95% RH
Display 2.4” TFT
Controller Microprocessor
Safety features Shrouded plugs and sockets
Compliance marks CE, ETL
Maximum voltage (V) 300
Maximum current (mA) 700
Maximum power (W) 150
Number of output pairs 5
Operating modes Constant Parameter, Programmable 6 Step Programme. Pre-programmed settings
Output diameter (mm) 4
No load detection Yes
Overload detection Yes
Ground leakage detection Yes
Over temperature protection Yes
