The downflow microscope enclosure provides a clean work environment and a UV light for irradiation between processes. UVTect™ microprocessor controller provides one-touch operation of all enclosure features. This configuration does not provide operator protection.

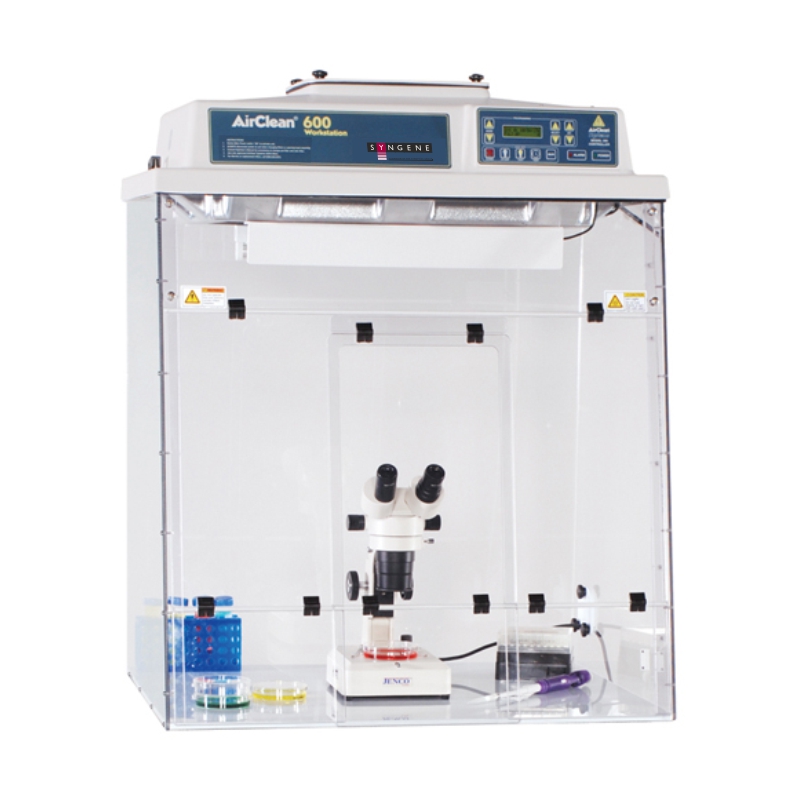

ISO 5 Laminar Flow Microscope Enclosure
Features
- No ductwork required
- No installation required – plugs directly into a standard 110V or 220V electrical outlet
- Encloses equipment while retaining full operator access
- UVTect® microprocessor controller
- ISO 5 vertical laminar flow air
- UV and fluorescent lights
- Seamless plastic design -no joints or gaps in construction
- Lab event timer
- HEPA filtration for capture of particulate to 0.3 microns in size
Safety Features
- Filter safety lockout to ensure correct filter replacement
- Polycarbonate and polypropylene design reflects UV energy
- Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
- Brushless, sparkless blower is post-filter
- Filter and electronics are located above the workspace, eliminating the chance of chemical spill
- Real time monitoring of installed filtration bed
Specifications
External
| Product Number | W x D x H (inches) | W x D x H (mm) |
| SYN-320PAS-E | 32 x 24 x 40 | 813 x 610 x 1016 |
| SYN-480PAS-E | 48 x 24 x 42 | 1219 x 610 x 1067 |
Internal
| Product Number | W x D x H (inches) | W x D x H (mm) |
| SYN-320PAS-E | 31 x 23 x 28 | 787 x 584 x 711 |
| SYN-480PAS-E | 47 x 23 x 30 | 1194 x 584 x 762 |
