SynMini - Mini horizontal electrophoresis system

SynMini

Key features:

  • Available with 7 x 7cm, 7 x 10cm or with both gel trays
  • Economic low gel and buffer volumes
  • Small lab bench footprint
Categories: ,
Register to download brochure
WHERE TO BUY
GO BACK

Overview

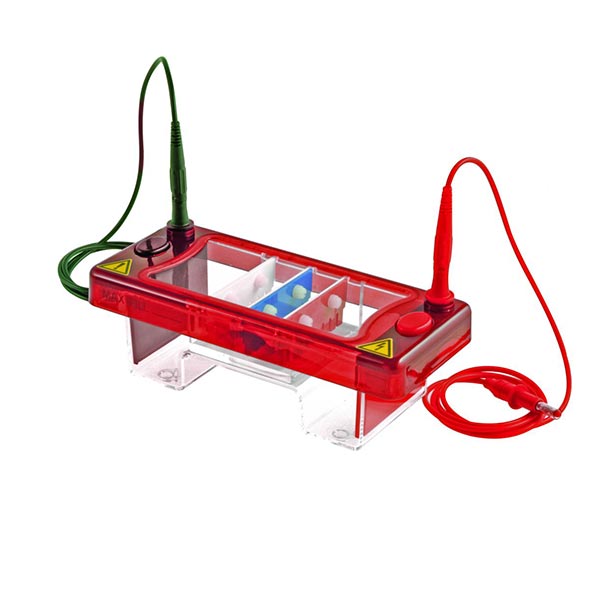

The SynMini is the smallest unit in the range, designed for low to medium numbers of samples. The small gel size maximises run economy but does not compromise versatility as two tray options are available – 7 x 7cm and 7 x 10cm – and combs ranging from preparative up to 16 samples. Simply by altering the gel tray or comb, this compact unit is capable of resolving up to 64 different samples, prepping 1ml of sample or separating sample bands over a distance of 9cm.

Buffer saver blocks physically reduce the volume of a gel chamber and buffer requirements, therefore saving cost.

Ordering Information

Ordering Information
SYNMINI7 SynMini, 7 x 7cm Gel Tray, 2 x 8 sample combs, loading guides and dams
SYNMINI10 SynMini, 7 x 10cm Gel Tray, 2 x 8 sample combs, loading guides and dams
SYNMINIDUO SynMini, 7 x 7cm & 7 x 10cm Gel Tray, 2 x 8 sample combs, loading guides and dams

Specifications

SKU SYNMINI10 SYNMINI7 SYNMINIDUO
Unit dimensions (cm) 9 x 21 x 9 9 x 21 x 9 9 x 21 x 9
Maximum sample capacity 64 32 64
Base buffer volume 225 225 225
Buffer recirculation No No No
Flexicaster options SYN7/10-FC, SYN15/20-FC, SYN26-FC SYN7/10-FC, SYN15/20-FC, SYN26-FC SYN7/10-FC, SYN15/20-FC, SYN26-FC
Typical running conditions 80V, 45-60 minutes 80V, 45-60 minutes 80V, 45-60 minutes
Bromophenol blue migration rate ~4-5cm/h at 80V ~4-5cm/h at 80V ~4-5cm/h at 80V
Gel dimensions 7 x 10 7 x 7 7 x 7 & 7 x 10

Accessories

multiSUB Mini - 7 x 7cm Gel tray SynMini – 7 x 7cm gel tray
SynMini – 7 x 10cm gel tray
SynMini – positive electrode
SynMini – negative electrode
SynMini – gel tray dams
Flexicasters
SynMini – loading guides
SynMini – viewing platform
SynMini – cool-pack and platform
SynMini – buffer saver blocks
SynMini – 7cm UV gel scoop
SynMini combs
Electrophoresis cable (black and red)
